Expand Systems Printers

	Mutoh 1938TX	Mutoh 1938WX	Mutoh 1948WX	XPJ 1682WR
Paper Printer		X	X	X
Fabric	X
Pigment (Most Fibers)	X
Dye Sublimation (Polyester Only)		X	X	X
Disperse Dyes (Polyester)	X
Reactive Dye	X
Acid Dye	X
4 color		X	X	X
8 color	X	X	X
Dimensions (W x D x H)	117.4" x 44.6" x 49.6"	117.4" x 34.9" x 49.7"	117.4" x 52.5" x 49.6"	109" x 35" x 56"

MUTOH 1938TX

The Mutoh 1938TX is the perfect solution for short runs and sampling. National brand holders design teams are using this platform to save money on sampling while keeping their new designs in house until mass production. Designers own these machines to produce their own fabrics in house. One of Expand’s customers saved more than $15,000 on their cost of samples for the first trade show they exhibited after purchasing the printer. Companies such as Spoonflower have used multiple Class I printers from Expand Systems for their ecommerce production. The repetition allowed them to continue production if one printer was down for maintenance and assign individual fabrics to each printer.

For the past 16 years, Expand Systems has provided the market with our Class I printer with a custom fabric handling system. First, with the MC3 printer, then with the highly successful DIVA printer. Expand is not an engineering company, however, we took on that roll to help small companies like Spoonflower, and others entering into the digital textile market, with a printing solution that met both their production and financial needs. Now OEMs, such as Mutoh, have developed a fabric handling solution for their machines. So we have hung up our engineering hats and are fully endorsing and selling the Mutoh 1938TX printer as our Class I solution. After thorough testing, we believe this printer carries on the legacy we created in the market and that it more than meets the needs of new customers as well as the future growth of our current customer base.

FEATURES

Natural color expression through 8 color dual staggered Micro-Piezo Epson printheads
Can print on NON-COATED fabric up to 64" wide
Bulk ink system allows for ink replacement during printing
Proprietary fabric handling system allows for printing on very thin fabric without distortion
Prints 8-15 square yards per hour in 8 color
Cottons, Blends, Polyester, Silk, Wool
Pigment, Acid Dye, Reactive, Disperse Dye for Direct Print

MS JP3

The MS JP3 is available with either 2 or 4 Kyocera printing heads for dye sublimation transfer up to 180 square meters per hour.

FEATURES

Maximum speed up to 180 m²/hour
Up to 4 Kyocera Printing Heads
600 x 600 DPI Resolution (DPI - dots per inch)
16 Greylevels
From 4 pl to 72 pl drop size
Open Software System
Embedded Remote Diagnostic
Embedded web server for cost report
180cm (70.86 inches) printing width
Mini-Jumbo Roll System available

INK & PAPER

Dye Sublimation Ink
Polyester

Mutoh 1938WX

The Mutoh ValueJet 1938WX, a 74-inch printer, is perfect for high-production dye-sublimation applications. Create scarves, blankets, promotional items, tradeshow graphics, flags, banners, custom interior designs, apparel, sports uniforms and more. Designed with advanced features including a rear media feed lever for easy material handling, take-up system, a user-friendly control panel, and a short learning curve so you can focus on customers and profits. The VJ-1938WX provides outstanding performance at a competitive price, making it the smart printer choice for shops looking to expand applications, increase production and improve efficiency. In today's competitive market place you need a printer that is simple to learn and easy to run. Mutoh's ValueJet 1938WX offers the fastest production speed of any dye-sublimation printer in its price range and provides a low maintenance learning curve with no complicated operating issues.

FEATURES

74 inch dye-sublimation
Up to eight color
Compatible with Mutoh's DH-21 ink
Staggered dual heads
Rear media feed lever
Open ink architecture
Open RIP software architecture
Automatic sheet off function
Take-up system included
One year on-site limited warranty

MS JP4

FEATURES

Maximum speed up to 180 m²/hour
Up to 4 Kyocera Printing Heads
600 x 600 DPI Resolution (DPI - dots per inch)
16 Greylevels
From 4 pl to 72 pl drop size
Open Software System
Embedded Remote Diagnostic
Embedded web server for cost report
180cm (70.86 inches) printing width
Mini-Jumbo Roll System available

INK & PAPER

Dye Sublimation Ink
Polyester

The MS JP4 is available with either 2 or 4 Kyocera printing heads for dye sublimation transfer up to 180 square meters per hour.

Mutoh 1948WX

FEATURES

75 inch dye-sublimation
Up to eight color
Compatible with Mutoh's DH-21 ink
Four staggered heads
Rear media feed lever
Open RIP software architecture
Automatic sheet off function
HD Take-up system included
One year on-site limited warranty

The Mutoh ValueJet 1948WX is built for real production-based printing. With its staggered four-head design, the VJ-1948WX prints at speeds up to 2,199 sqft/hr. Create trade show graphics, promotional items, flags, interior decor, apparel and much more.
The VJ-1948WX includes advanced features including a rear media feed lever for easy material handling, HD take-up system, an easy-to-navigate control panel. The VJ-1948WX provides high production perfromance at a competitive price, making it the smart printer choice for increased dye-sublimation printing.

MS JP5 Evo

The MS-JP5 Evo is the first in our offering of MS Digital printing products using new two-color Kyocera print heads. The MS-JP5 Evo prints 40 to 60 linear yards per hour. We classify this as Class II because of the increased printing speeds for all types of fabrics.

The Class II roller fabric handling system allows for the widest variety of fabrics, but as speed increases, a more sophisticated fabric handling system is required. MS has used their extensive knowledge of screen printing and incorporated it into digital printer technology. The printing blanket with glue (“sticky belt”) holds the fabric in place while printing at high speeds. This innovative technology allows for printing on 4-way stretch material that is not possible on Class I machines.

FEATURES

Maximum speed up to 180 m²/hour
Up to 4 Kyocera Printing Heads
600 x 600 DPI Resolution (DPI - dots per inch)
16 Greylevels
From 4 pl to 72 pl drop size
Open Software System
Embedded Remote Diagnostic
Embedded web server for cost report
180cm (70.86 inches) printing width
Mini-Jumbo Roll System available

INK & FABRIC

Pigment, Reactive Dye, Acid Dye, Direct Disperse
Cotton, Blends, Silk Wool, Nylon, Lycra

MS JP5 Evo

The MS-JP5 Evo is the first in our offering of MS Digital printing products using new two-color Kyocera print heads. The MS-JP5 Evo prints 40 to 60 linear yards per hour. We classify this as Class II because of the increased printing speeds for all types of fabrics.

The Class II roller fabric handling system allows for the widest variety of fabrics, but as speed increases, a more sophisticated fabric handling system is required. MS has used their extensive knowledge of screen printing and incorporated it into digital printer technology. The printing blanket with glue (“sticky belt”) holds the fabric in place while printing at high speeds. This innovative technology allows for printing on 4-way stretch material that is not possible on Class I machines.

FEATURES

Maximum speed up to 180 m²/hour
Up to 4 Kyocera Printing Heads
600 x 600 DPI Resolution (DPI - dots per inch)
16 Greylevels
From 4 pl to 72 pl drop size
Open Software System
Embedded Remote Diagnostic
Embedded web server for cost report
180cm (70.86 inches) printing width
Mini-Jumbo Roll System available

INK & FABRIC

Pigment, Reactive Dye, Acid Dye, Direct Disperse
Cotton, Blends, Silk Wool, Nylon, Lycra

Mutoh XpertJet 1682WR

The XpertJet 1682WR 64" is a high-speed water-based inkjet printer with a new platform that inherits the properties of the XpertJet series. The XPJ-1682WR provides improved usability and reduces operational workload which will ensure high-quality prints, high productivity outputs, and user-friendly operation. Newly developed Multi-stage pressurizing system enhances media feed stability for a wide range of media. The MUTOH original dye-sublimation transfer ink (DH21) provides optimum print quality and wide color gamut. The DH21 ink is available in a 4-color configuration CMYK. Large capacity ink bags (1,000ml or 2,200ml) with newfront access ink cases support prolonged continuous printing. The XPJ-1682WR delivers high-quality graphics onto a wide range of materials such as trade show graphics, flags, banners, custom interior designs, apparel, sports uniforms and more.

FEATURES

Mutoh's genuine VerteLITH RIP software bundled with FlexiDESIGNER Mutoh Edition 21 optimizes the XPJ-1682SR Pro 64" printer through these key features:

High-precision aluminum rail system for high quality and stable printing.
Ease-of-use with front access ink holders, side mounted LAN and power plugs, and LED operation panel.
New AccuFine HD printheads provide faster speeds with exceptional quality.
Built-in sensors for operator-driven automatic bi-directional and page feed alignments.
Improved front dryer system for 20% faster ink dry times.
Updated media flanges and media feeding mechanism allow for easy loading and page feed.
Internal LED lighting for unobstructed print viewing and maintenance access.
Includes the Mutoh Status Monitor (MSM) companion software for convenience and efficiency.

MS JP6

FEATURES

Utilizes 4,6,7-8 Kyocera Print Heads Single Row depending on number of desired colors
Kyocera Print Head able to print up to 180 linear fabric yards per hour in 4 to 8 color
The printing blanket mirrors screen printing machines:
Glue on the printing blanket fixes fabric during printing
From 4 pl to 72 pl drop size
Printing Blanket washed by washing module with driven brushes and squeegees for residue removal and drying
Variable Dot Size - from 4-7-12-18 pico-liters with muti-pulse technology from MS Printing Solutions enables four times the drop sizes
Print up to 16 grey scale levels with variable dots, up to 72-Pico-Liters
Open Ink System

INK & PAPER

Open Ink System
Fabrics Include Blends and 4-Way Stretch Material
Several Manufacturers that we represent including Huntsman and Stork have approved inks for the Kyocera Print Heads. R&D is still being done for Pigments using the Kyocera Print Heads. Please check back with us for updates

MS-JP6 has Kyocera Heads and can achieve production speeds up to 180 linear yards per hour on fabric and 250 linear yards with the MS-JP6. The printer has a small footprint and low power requirements. The pretreated fabric enters and exits directly from the back side of the printer. The MS-JP6 comes with a drying unit.

The mechanical parts of the machine, as well as the fabric carrying system is the result of the vast experience of MS in the manufacturing of textile printing machines, both screen and digital, an experience that allowed MS to reach an almost absolute reliability and precision in the fabric tension and advancement control Fabric drying on the MS-JP6 is achieved through a hot air dryer electrical system.

MS JP7

FEATURES

Utilizes 4, 6, or 7-8 Kyocera Single Row Print Heads
One or Two Row Configurations
Kyocera Print Heads able to print up to 180 linear fabric yards per hour in 4-8 colors
The printing blanket mirrors screen printing machines:
Glue on the printing blanket fixes fabric during printing
Drop size from 4 pico- liters to 72 pico-liters
Printing Blanket washed by washing module with driven brushes and squeegees for residue removal and drying
Variable Dot Size - from 4-7-12-18 pico-liters with muti-pulse technology from MS Printing Solutions enables four times the drop sizes
Print up to 16 grey scale levels with variable dots, up to 72-Pico-Liters
Open Ink System

INK & PAPER

Available for All Paper or Direct on Fabric

MS JPK Evo

FEATURES

Printing Carriage Specially designed to carry 1, 2, 3 or 4 rows of printing heads
4-Row set-up can be configured from 4-8 color printing system
The heart of the MS-JPK Evo, the printing section, has a printing carriage specially designed to carry 1, 2, 3 or 4 rows of printing heads.
Up to 500 running meters/hour
16 greyscale levels with peak variable drop size of 72 pico-liters
Open Ink System
Can be built for 1.8 meter width up to 3.2 meter width.
Maximum Speeds up to 60 linear yards per hour
Combines great flexibility with productivity for the highest printing quality standards
Options include media system capable of handling jumbo rolls

MS JPK-EVO FEATURES The base of the JPK-EVO machine is equipped with an axial unwinder at the inlet, capable of unwinding fabric rolls with a maximum diameter of 400mm. Through an expandable shaft, openers and fabric tensioners the JPK-EVO has adjustable positioning. This configuration turns easily even with the most elastic, delicate and difficult fabrics.The printing blanket is the same type used on the MS screen printing machines. It is covered with thermal glue, which is activated by a warm air system installed in the bottom part of the machine. The blanket is washed by a washing module unit, equipped with driven brushes and squeegees that remove all ink residues, and dries the blanket in the final stage. Fabric drying on the JPK-EVO is achieved through an in-line intensive dry model, MS-Powerdry. This dryer can be heated by oil, steam or natural gas and allows one-pass-in-line drying as well as three-pass drying. The fabric at the outlet is wound on cardboard pipes due to the action of two rubber-covered driven cylinders. The machine can be equipped with big-batch unwinders and winders, staves centering unit, folding (plating) device at the outlet, etc. Though the machine can be driven by different printing software (RIP) according to customer specs, the JPK-EVO is supplied with MS RIP Matchprint II.

Watch it in action

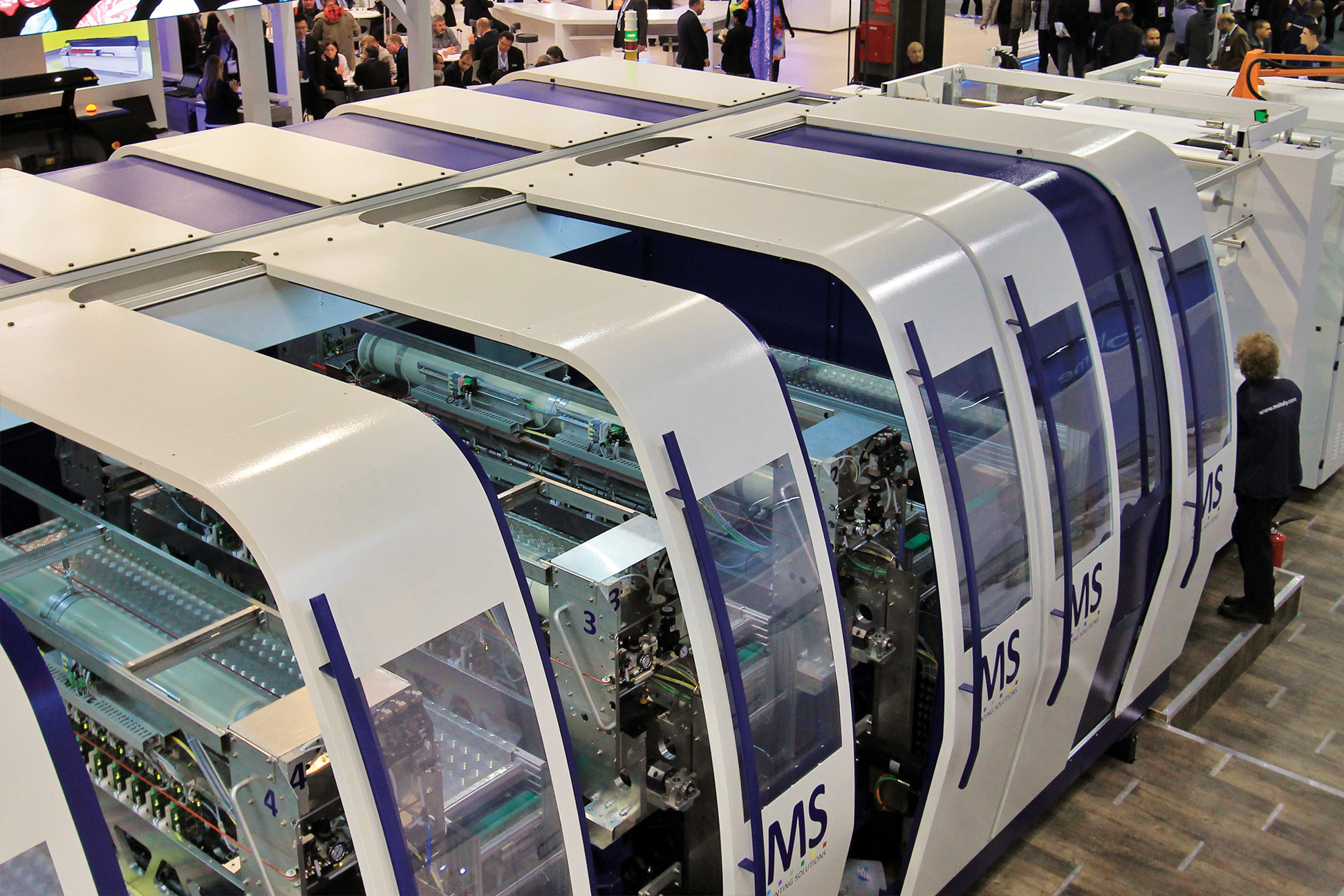

MS LARIO

MS LARIO Since its introduction in 2012, the continuous single-pass MS LaRio has already been installed globally, replacing traditional rotary printers. Continuous single-pass digital printing has proven to be more versatile, easier to use and more reliable than traditional rotary printers. The LaRio eliminates the limitations on repeats that restrict rotary printing. Colors and designs can be changed “on-the-fly” without stopping the printer. MS Printer Solutions is the first to introduce this revolutionary “Single-Pass Continuous” digital printing method and continues to be the leader in the single pass machine offering. The MS LaRio can be customized to meet individual printing needs and can be built on-site. Contact Expand Systems for how you can lead the market with the LaRio.

FEATURES

MS LaRio Digital Textile Printer Diagram

With Single-Pass Continuous printing technology, only the media moves
Print heads are in a “fixed array” line on a stationary crossing bar that covers the entire width of the medium
Each bar prints only a single color
A minimum of 4 (CMYK) bars are required. Extra colors require extra bars
Very large textile roll handler
Foulard squeezing and preparing machine
MS High Temperature (HT) Steamer
MS-Washer 8V Continuous Washing Implant
MS-2T400/40 Drying Unit

Watch it in action
